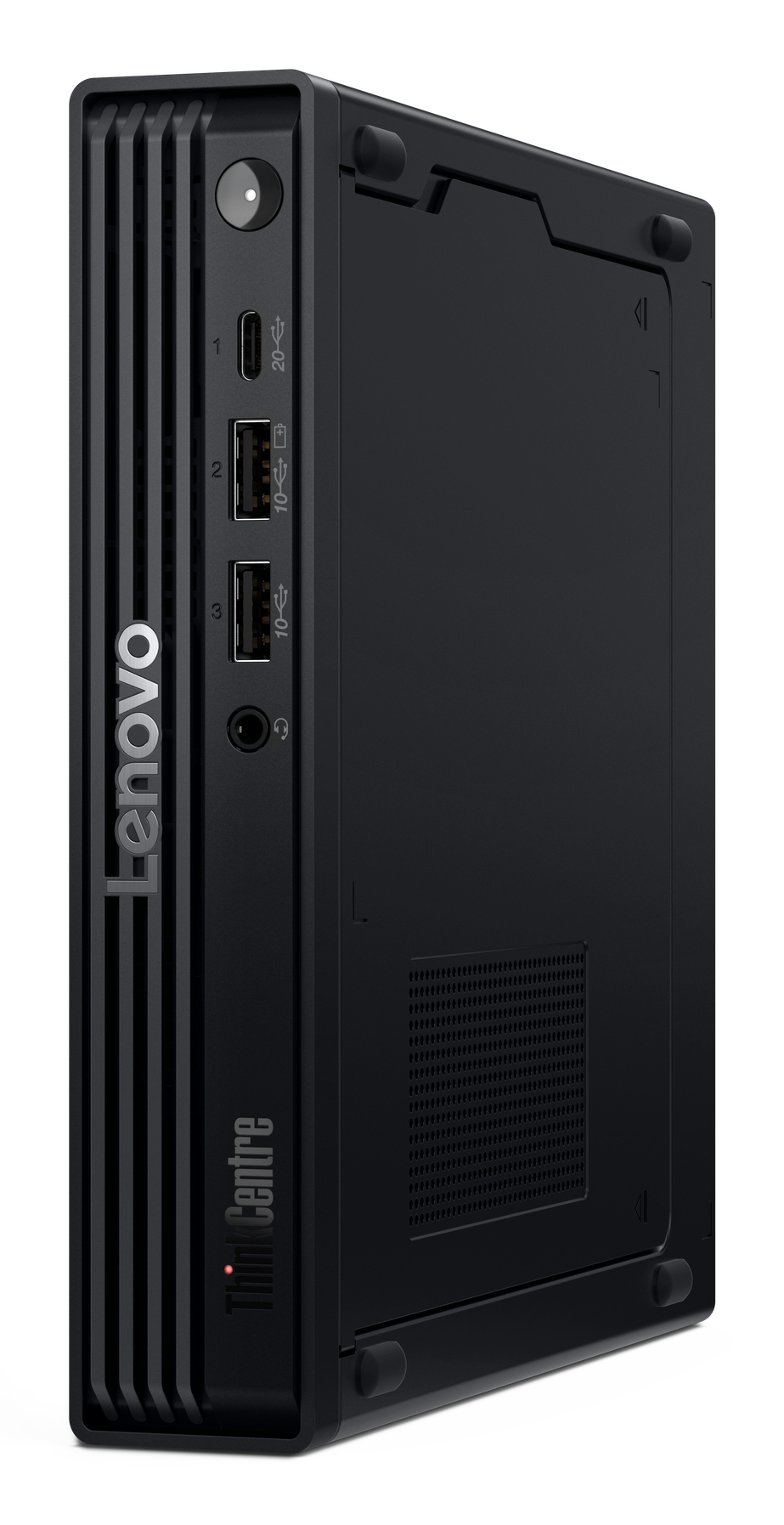

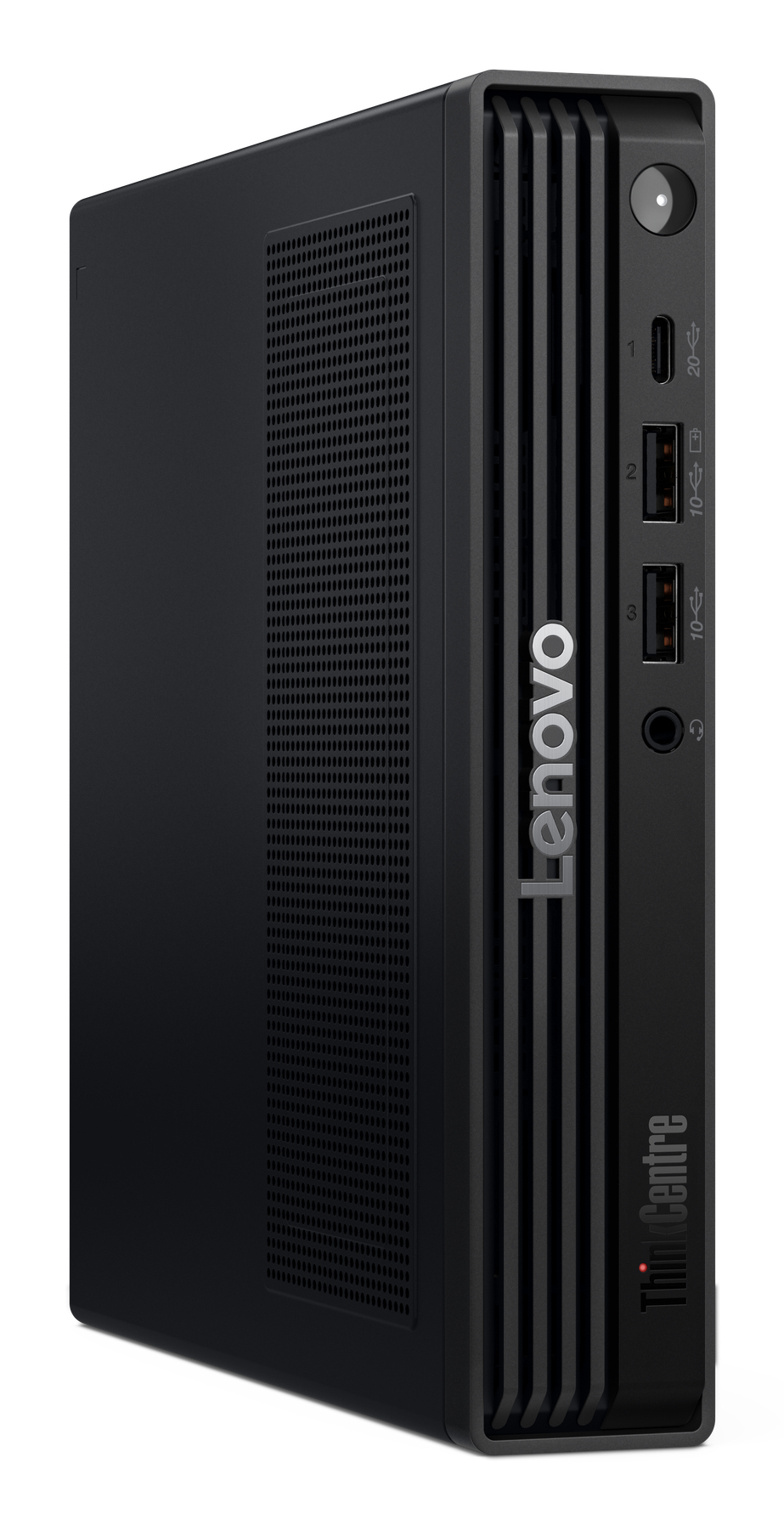

BIG POWER IN A TINY FORM Smarter AI for Any Situation Built to provide power in small spaces, the ThinkCentre M90q Gen 6 Tiny PC delivers industry-leading AI-driven performance and unparalleled productivity — all in a sleek, modern design. It boasts functionality, security, manageability, expandability, and durability, tapping into limitless potential. Leverage your capabilities without compromise.
REDEFINE AI WORKFLOWS WITH BLAZING PRECISION IT Manageability With AI-Driven Performance Powered by Intel® Core™ Ultra processors, the ThinkCentre M90q Gen 6 Tiny PC features an integrated NPU along with Intel vPro® for security and IT manageability. Lenovo AI Now drives AI acceleration, while the AI Turbo Engine optimizes performance by allocating X Processing Unit (XPU) workloads. Plus, up to optional WiFi 7 ensures blazing-fast connectivity.
COMPACT POWER, INFINITE POTENTIAL Customizable Productivity Enjoy unmatched productivity with faster USB speeds, connect to up to four displays, and power through tasks with vast memory and expandable storage. With multiple ports and an optional USB-C® (Thunderbolt™ 4) port, expand possibilities further. Bundle the ThinkCentre M90q Gen 6 Tiny PC with Tiny-in-One (TIO) monitor for smarter, cost-effective upgrades.
A SUITE OF ADVANCED PROTECTIONS No-Compromise Security This secured-core PC (L3) features ThinkShield security, encompassing hardware and software solutions. Get additional safeguards with self-healing BIOS, dTPM chip, a Kensington Security Slot™, and Smart USB Protection. Choose Intel vPro® security for advanced threat protection, while securing your data and business with ThinkCentre Customization.
PEAK PERFORMANCE IN THE TOUGHEST CONDITIONS Safe, Durable & Efficient 24/7 This PC uses the US Department of Defense MIL-STD-810H for a balance of reliability and durability. With TĂśV anti-dust, low surface, and shock-resistance certifications, it stands strong in tough environments, while ensuring safety through IEC Electrical Safety and Electromagnetic certifications, offering first-class manageability for any workspace.
CREDIBILITY & COLLABORATION Sustainability Our goal is to provide smarter technology that builds a brighter, more sustainable future for our customers, communities, and the planet. That's why we pursue industry leading labels and certifications that demonstrate our commitment to sustainability in product design. Together, we can build a smarter future for all.
Specifications may vary depending upon region / model.
Product Specifications
Manufacturer
Lenovo
Manufacturer Part Number
13AC001UUS
GTIN / Barcode
0199271850862
Brand Name
Lenovo
Product Name
Lenovo ThinkCentre M90q Gen 6 Intel Core Ultra 5 235 32 GB DDR5-SDRAM 1 TB SSD Windows 11 Pro Mini PC Black
Mfr. Part Number
13AC001UUS
GTIN / Barcode
0199271850862
Processor
Processor manufacturer
Intel
Processor family
Intel Core Ultra 5
Processor generation
Intel Core Ultra (Series 2)
Processor model
235
Processor cores
14
Processor threads
14
Processor boost frequency
5 GHz
Performance cores
6
Efficient cores
8
Performance-core Max Turbo Frequency
5 GHz
Efficient-core Max Turbo Frequency
4.4 GHz
Performance-core base frequency
3.4 GHz
Efficient-core base frequency
2.9 GHz
Processor cache
24 MB
Processor cache type
Smart Cache
Number of processors installed
1
Processor base power
65 W
Maximum turbo power
121 W
Neural processor unit (NPU)
Neural processor unit (NPU)
Intel AI Boost
Sparsity support
Yes
Windows Studio effects support
Yes
AI software frameworks supported by NPU
DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Total processor performance up to
27 TOPs
NPU performance up to
13 TOPs
GPU performance up to
6 TOPs
Memory
Internal memory
32 GB
Maximum internal memory
64 GB
Internal memory type
DDR5-SDRAM
Memory layout (slots x size)
1 x 32 GB
Memory slots
2x SO-DIMM
Memory clock speed
5600 MHz
Memory channels
Dual-channel
Storage
Total storage capacity
1 TB
Storage media
SSD
Optical drive type
No
Number of storage drives installed
1
Total SSDs capacity
1 TB
Number of SSDs installed
1
SSD capacity
1 TB
SSD interface
PCI Express 4.0
NVMe
Yes
SSD form factor
M.2
M.2 SSD size
2280 (22 x 80 mm)
Card reader integrated
No
Graphics
Discrete graphics card
No
On-board graphics card
Yes
Discrete graphics card model
Not available
On-board GPU manufacturer
Intel
On-board graphics card family
Intel® Graphics
On-board graphics card model
Intel® Graphics
Performance
Motherboard chipset
Intel® Q870
Password protection
Yes
Password protection type
BIOS, Power on
Trusted Platform Module (TPM)
Yes
Product type
Mini PC
Trusted Platform Module (TPM) version
2.0
Network
Ethernet LAN
Yes
Ethernet LAN data rates
100,1000 Mbit/s
Wi-Fi
Yes
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
Wi-Fi standards
Wi-Fi 6E (802.11ax)
WLAN controller manufacturer
Intel
WLAN controller model
Intel Wi-Fi 6E AX211
Antenna type
2x2
Bluetooth
Yes
Bluetooth version
5.3
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
5
USB 3.2 Gen 2x2 Type-C ports quantity
1
DisplayPorts quantity
2
HDMI ports quantity
1
HDMI version
2.1
Ethernet LAN (RJ-45) ports
1
Combo headphone/mic port
Yes
Power
Power supply
135 W
Power supply input voltage
100 - 240 V
Power supply input frequency
50/60 Hz
Design
Chassis type
Mini PC
Volume
1 L
Placement supported
Horizontal/Vertical
Brand
Lenovo
Availability
In Stock
Price Currency
USD
Category
Desktops & Workstations
