StarTech.com 14-Outlet Rackmount PDU, 1U Server Power Strip with 6x Front and 8x Rear Ports,
Availability: In StockMfr. Part#: 1415B8H-RACK-PDU-SP
$153.67Save 8% · $11.71
$141.96USD
Prices shown in USD. Taxes, duties and freight are quoted separately.
Call 888-221-7703 for volume pricing.
Add fourteen power outlets to a 19in server rack or cabinet
Deliver consistent power to critical equipment in server rooms, AV racks, and test benches. This 1U rackmount PDU features 14 NEMA 5-15 electrical, a built-in circuit breaker, surge protection, and versatile mounting options, making it a dependable power backbone for critical deployments.
Maximize Connectivity in High-Density Racks

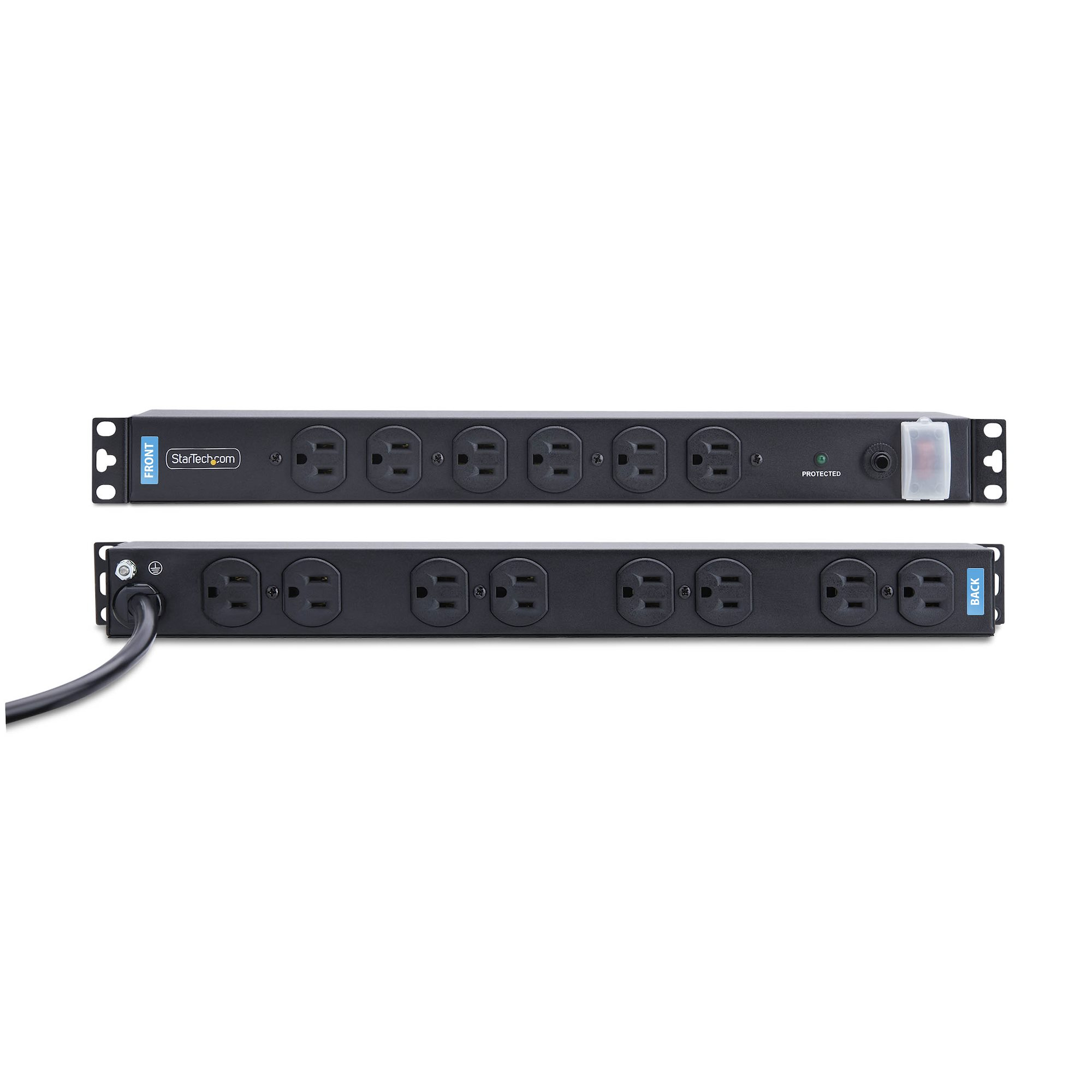

Designed for dense IT and AV environments this unit powers up to 14 devices through 6x front and 8x rear-facing NEMA 5-15 outlets. The built-in 8ft (2.4m) power cord provides the flexibility and reach needed to accommodate various configurations.
Built-in Protection for Critical Hardware
The integrated 15A circuit breaker helps protect connected equipment by automatically cutting power if the total current draw exceeds safe operating limits. The PDU features surge protection rated up to 3,000 joules, helping to safeguard devices from sudden power spikes and electrical surges. The illuminated power switch makes it easy to verify power status at-a-glance, even in dimly lit environments, and has a protective cover to help prevent accidental shutdowns during day-to-day tasks around the connected equipment.
Flexible Mounting

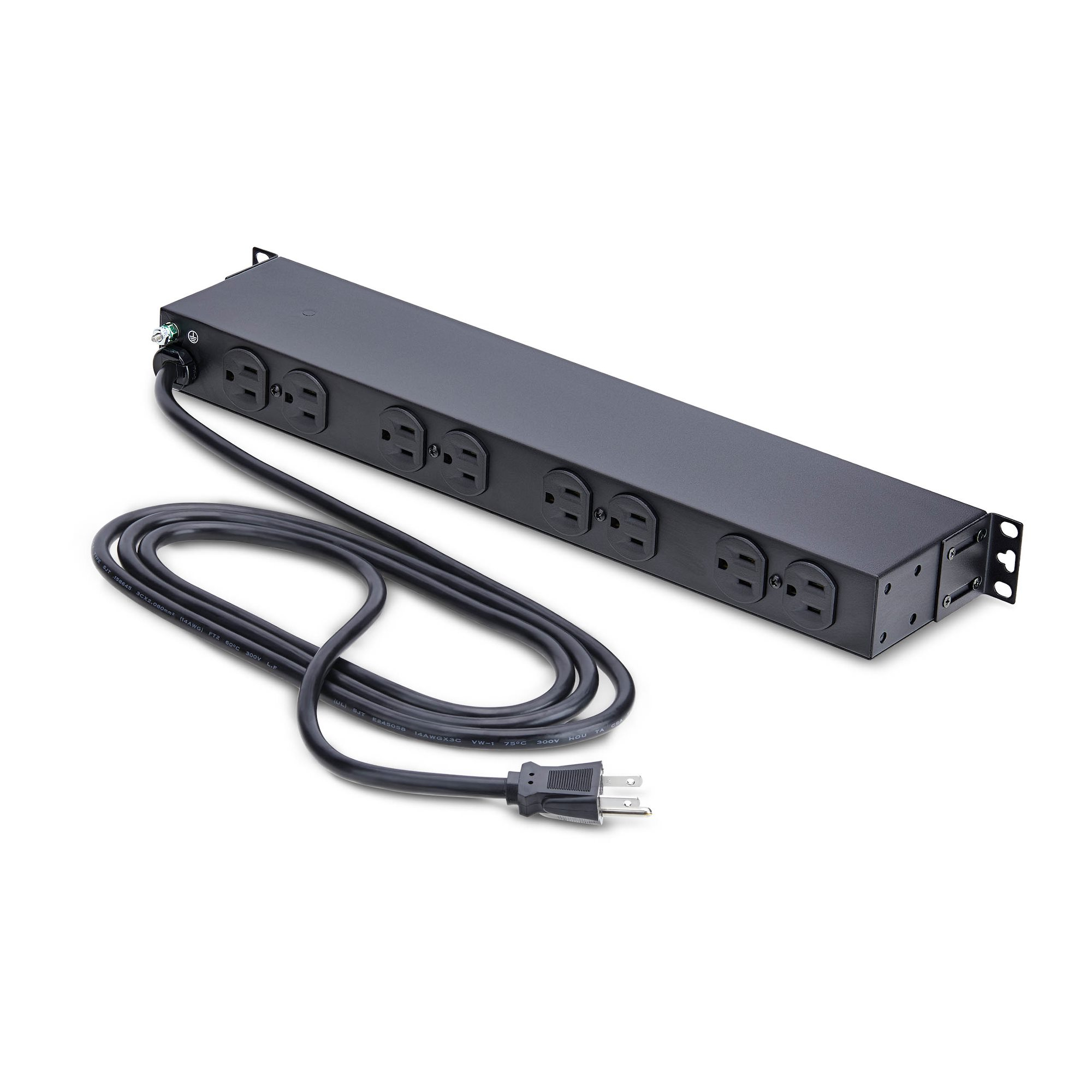

Power delivery unit is TAA-compliant and includes 4-way mounting brackets that provide flexibility for horizontal or vertical mounting. The PDU is compatible with standard 19" EIA-310 racks that are at least 4in (10.1cm) deep and is constructed from durable, powder-coated SPCC steel for long-term reliability. Additionally, the built-in 8ft (2.4m) power cord provides the flexibility and reach needed to accommodate various configurations.
Product Specifications
Manufacturer
Startech.com
Manufacturer Part Number
1415B8H-RACK-PDU-SP
GTIN / Barcode
0065030920964
Brand Name
StarTech.com
Product Name
StarTech.com 14-Outlet Rackmount PDU, 1U Server Power Strip with 6x Front and 8x Rear Ports, Mounted Power Distribution Unit for 19-Inch Racks and Cabinets
Mfr. Part Number
1415B8H-RACK-PDU-SP
GTIN / Barcode
0065030920964
Design
PDU types
Basic
Rack capacity
1U
Housing material
Steel
Product colour
Black
On/off switch
Yes
Ports & interfaces
AC outlets quantity
14 AC outlet(s)
Power plug
NEMA 5-15P
AC outlet types
NEMA 5-15R
Features
Cable length
2.4 m
Power
Nominal input voltage
120 V
Maximum current
15 A
Nominal output voltage
120 V
Output voltage
125 V
Load capacity
1500 VA
Maximum total current draw per phase
15 A
Circuit breaker
Yes
Certificates
Compliance certificates
RoHS, Trade Agreements Act (TAA)
Weight & dimensions
Width
95.2 mm
Depth
462.5 mm
Height
43.3 mm
Weight
1.62 kg
Packaging content
Manual
Yes
Screws included
Yes
Number of screws
4
Screw nuts included
Yes
Number of screw nuts
4
Rack mount kit
Yes
Packaging data
Package weight
2.6 kg
Package width
185 mm
Package depth
552 mm
Package height
80 mm
Logistics data
Master (outer) case width
570 mm
Master (outer) case length
206 mm
Master (outer) case height
352 mm
Products per master (outer) case
4 pc(s)
Brand
StarTech.com
Availability
In Stock
Price Currency
USD
Category
Servers
