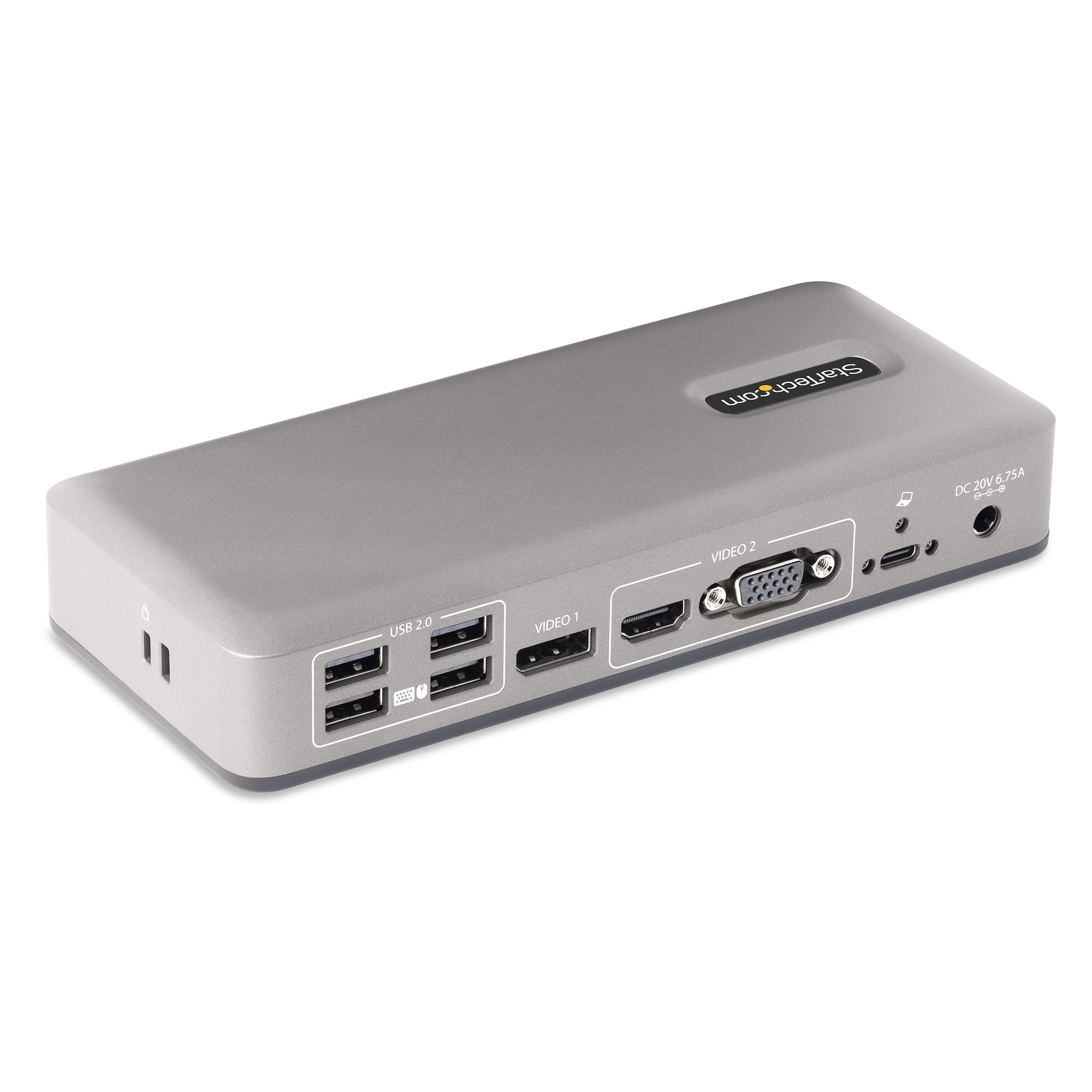

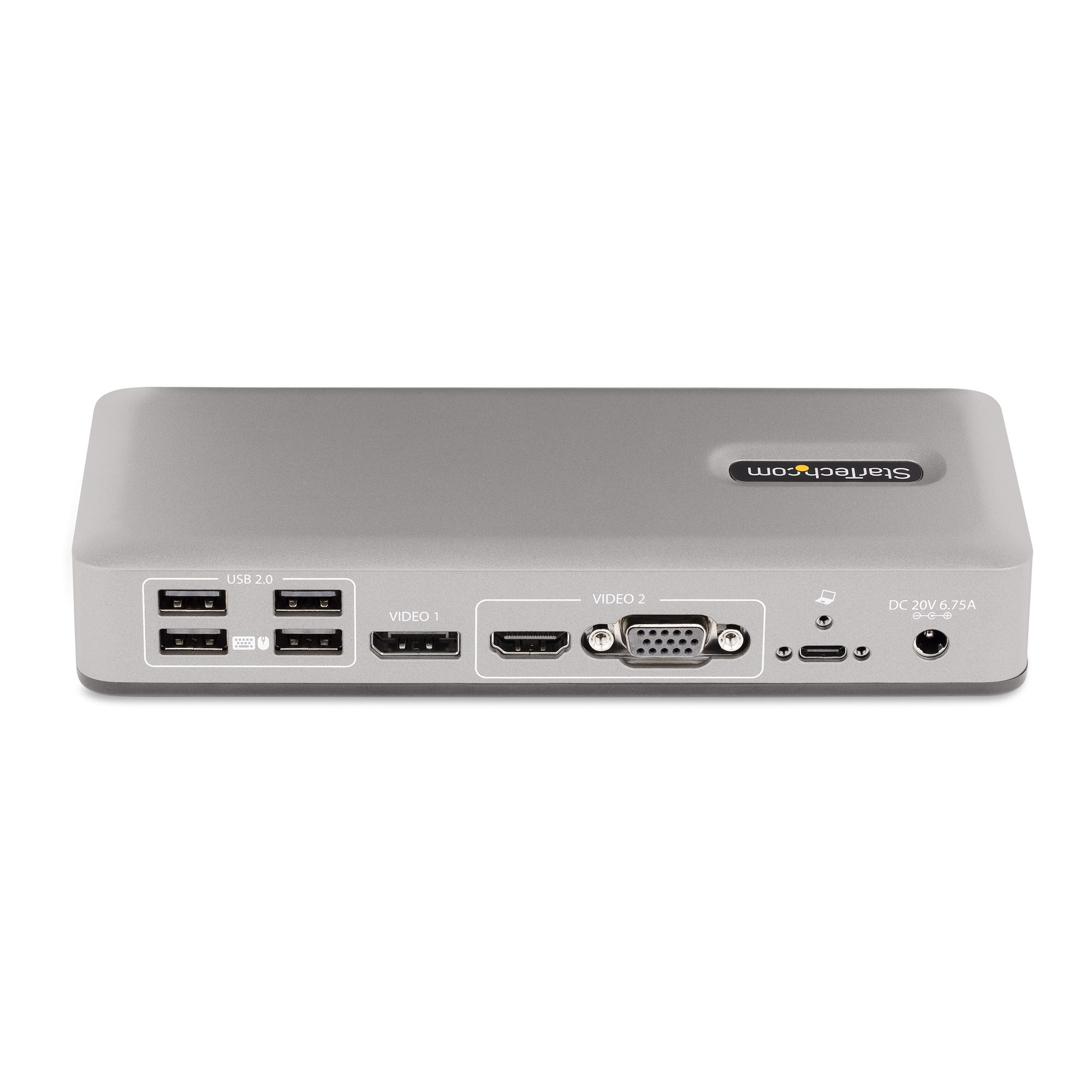

StarTech.com Dual-Monitor USB-C Docking Station, DisplayPort & HDMI or VGA, Multi Monitor Dock up

Turn a USB Type-C enabled laptop into a dual-monitor DisplayPort and HDMI or VGA workstation with 6 USB-A and 1 USB-C peripheral ports

This USB Type-C Docking Station expands the connectivity of a USB-C laptop, enabling support for dual monitors and adding seven downstream USB ports. The USB-C Dock features driverless installation. It's compatible with USB-C and Thunderbolt 3/4 computers and works with Windows and ChromeOS computers. The Dock features a locking USB-C host port and includes a USB-IF Certified 3.3ft (1m) locking host cable.

High-Performance Dual Video via MST

The docking station provides DisplayPort 1.4, HDMI 2.0b and VGA video outputs with support for dual or single video output configurations, creating a powerful workstation. It supports DP 1.4 Alt Mode with MST allowing for uncompressed video performance up to dual 2560x1440 at 60Hz, or single-4K 60Hz on the DisplayPort and HDMI video outputs. Connect a DisplayPort monitor and choose between HDMI or VGA for the second display. This provides users with the flexibility to enjoy dual-monitor functionality with different connectivity options, based on preference or available monitors.

Video performance, such as resolution and refresh rate across both monitors, is dependent upon the host computer and it's video controller. A source device with support for DisplayPort 1.4 and MST is required to achieve maximum performance. Please review the below chart and the specifications of your computer and displays to determine the expected video performance.

Platform

Single Monitor

Resolution

Dual Monitor

Resolution

DisplayPort 1.4

(Intel 11th Generation and Higher)

1x 4K 60Hz

2x 2560 x 1440p 60Hz

DisplayPort 1.2

(Intel 10th Generation and Below)

1x 4K 30Hz

2x 1920x1200/1080p 60Hz

Notes:

• All specified resolutions support RGB color representation (4:4:4)
• Computers with discrete graphics controllers may achieve higher performance
• Chart assumes combination of DisplayPort and HDMI video outputs, maximum VGA resolution is 1920x1200 in any configuration

Full-Featured Docking Station with Built-in 7-Port USB Hub

Connect the docking station to the host computer's USB 3.2 Gen 1 (5Gbps) Type-C port to access a wide range of port connectivity and features, including seven downstream USB ports with a variety of speeds and connector types. The docking station features:

• 1x DisplayPort 1.4 port for connecting an Ultra-High Definition monitor with support for resolutions up to 4K 60Hz.
• 1x HDMI 2.0b port with HDR for connecting an Ultra-High Definition monitor with support for resolutions up to 4K 60Hz.
• 1x VGA port for connecting a Full High-Definition monitor with support for resolutions up to 1080p/1920x1200.
• 2x USB-A (USB 3.2 Gen 1 5Gbps) ports for connecting high speed USB peripherals, such as SSD storage.
• 4x USB-A (USB 2.0 480Mbps) ports for USB HID devices, such as a keyboard and mouse.
• 1x USB-C (USB 3.2 Gen 1 5Gbps) ports for connecting high speed USB peripherals, such as SSD storage.
• 2x K-Slots (regular/nano) to tether the dock with a cable lock (sold separately) for security.
• Front facing Power Button to turn the dock on/off.

This dock is designed with a mounting pattern that enables it to be mounted when paired with StarTech.com mounting accessories (sold separately). With our mounting accessories, the dock can easily be attached to the VESA pattern on the back of a monitor, or to any flat surface, providing a clutter-free workspace. The mounting pattern ensures a secure fit, and the accessories are easy to install. The following mounts are compatible with this product:

• SSPMSUDWM - Docking Station Surface Mount
• SSPMSVESA - Docking Station VESA Mount

85W Power Delivery 3.0

The USB-C docking station supports 85W power delivery, facilitated by the included power adapter. With power delivery, users can confidently charge their devices while using the docking station. The provided power adapter ensures a consistent and stable power supply, allowing for uninterrupted productivity and device functionality.

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application

Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:

•

Advanced Windows Layout Utility : Setup and save custom windows layouts.

•

USB Event Monitoring Utility : Track and log connected USB devices.

For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools
