Home/Computers & IT Hardware/Laptops & Notebooks/StarTech.com USB-C to HDMI Multiport Adapter, 140W PD Charging, 4K 60Hz, 3-Port USB 10Gbps Hub, SD Card Slot, 2.5GbE, Mini Dock for MacBook / Dell / Thinkpad / HP
StarTech.com
StarTech.com USB-C to HDMI Multiport Adapter, 140W PD Charging, 4K 60Hz, 3-Port USB 10Gbps Hub, SD
Availability: In StockMfr. Part#: 177B-USBC-MULTIPORT
$78.11Save 8% · $5.95
$72.16USD
Prices shown in USD. Taxes, duties and freight are quoted separately.
Call 888-221-7703 for volume pricing.

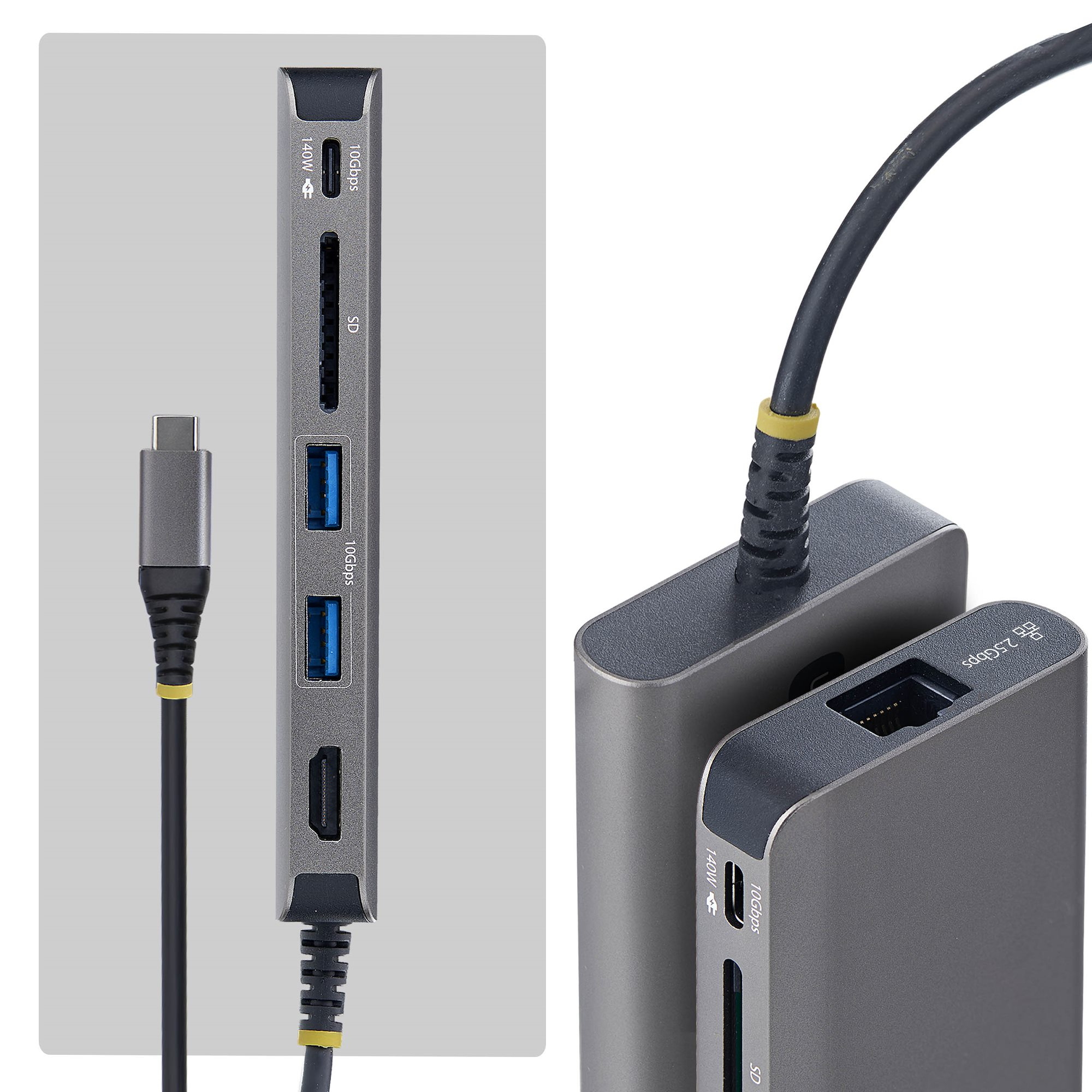

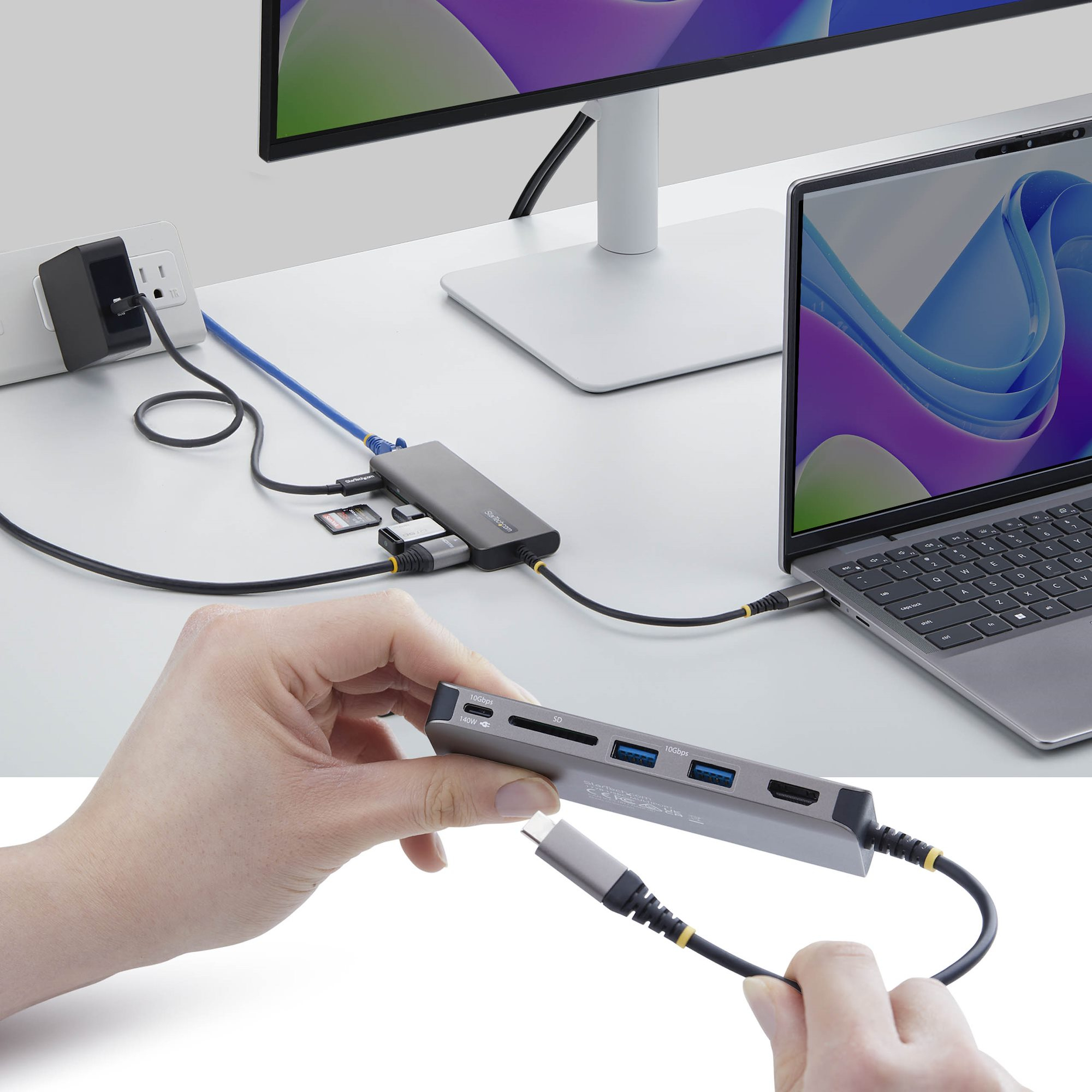

Create a mobile workstation wherever you work with a single 4K 60Hz HDMI display, 2x USB-A 10Gbps ports, 2.5Gbps Ethernet, an SD Card slot, and 140W USB Power Delivery 3.1 pass-through for laptop charging
Turn a single USB-C port into a complete mobile workstation with video, power, data, storage, and wired networking in one compact adapter.
Deploy Clean, Clutter-Free Workstations Anywhere
Transform one USB-C port into 4K 60Hz HDMI, 140W Power Delivery passthrough, and multiple USB ports. Reduce dongles in shared desks, hoteling spaces, travel kits, and field deployments. Standardize on one adapter to simplify provisioning and support across laptop deployments.
Power High-Performance and AI-Ready Laptops
Deliver up to 140W USB-C Power Delivery passthrough to support demanding workloads and high-performance systems. When power is not required, enable up to 10Gbps USB-C data transfer for fast external drives and peripherals. Give users flexible power or data based on their task and setup.
Expand Connectivity and Strengthen Network Performance
Access SD 3.0 UHS-I media for file transfers and connect phones, tablets, and storage through two 10Gbps USB-A ports. Add 2.5GbE for reliable wired networking in environments where Wi-Fi congestion, latency, or security policies impact productivity.
Built for Sustainability, Designed for Performance
This hub features a housing made from 75% post-consumer recycled (PCR) aluminum, 75% PCR Plastic, and a cable jacket composed of 35% PCR TPE (Thermoplastic Elastomer). The product also ships in FSC Mix packaging made from responsibly sourced materials. These materials help align your IT infrastructure with your organization's sustainability goals, without compromising on quality or durability.
Product Specifications
Manufacturer
Startech.com
Manufacturer Part Number
177B-USBC-MULTIPORT
GTIN / Barcode
0065030904162
Brand Name
StarTech.com
Product Name
StarTech.com USB-C to HDMI Multiport Adapter, 140W PD Charging, 4K 60Hz, 3-Port USB 10Gbps Hub, SD Card Slot, 2.5GbE, Mini Dock for MacBook / Dell / Thinkpad / HP
Mfr. Part Number
177B-USBC-MULTIPORT
GTIN / Barcode
0065030904162
Ports & interfaces
Connectivity technology
Wired
Host interface
USB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
USB Power Delivery (USB PD)
Yes
USB Power Delivery revision
3.2
USB Power Delivery up to
140 W
HDMI ports quantity
1
HDMI version
2.0
Microphone in
No
USB Type-C DisplayPort Alternate Mode
Yes
Network
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1
Ethernet LAN data rates
10,100,1000,2500 Mbit/s
Full duplex
Yes
Performance
Card reader integrated
Yes
Compatible memory cards
SD
Data transfer rate
10 Gbit/s
HD type
4K Ultra HD
Maximum digital resolution
3840 x 2160 pixels
Number of displays supported
1
Product colour
Grey
UASP support
Yes
Housing material
Aluminium, Plastic
Mean time between failures (MTBF)
28434 h
Power
Power source type
USB
Power consumption (max)
20 W
USB cable length
0.12 m
Software
Windows operating systems supported
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64
Mac operating systems supported
Mac OS X 13.0 Ventura, Mac OS X 14.0 Sonoma, Mac OS X 15.0 Sequoia, Mac OS 26 Tahoe
Linux operating systems supported
Yes
Mobile operating systems supported
iPadOS, iOS
Operational conditions
Operating temperature (T-T)
-10 - 45 °C
Storage temperature (T-T)
-10 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Weight & dimensions
Width
50 mm
Depth
125 mm
Height
15 mm
Weight
100 g
Packaging data
Package width
190 mm
Package depth
57 mm
Package height
19 mm
Package weight
141 g
Packaging content
User guide
Yes
Technical details
Compliance certificates
RoHS, CE
Logistics data
Products per master (outer) case
80 pc(s)
Master (outer) case width
425 mm
Master (outer) case length
205 mm
Master (outer) case height
260 mm
Other features
Chipset
VIA - VL600, VIA - VL109, VIA - VL822, Realtek - RTL8156BG, Genesys Logic - GL3224
Brand
StarTech.com
Availability
In Stock
Price Currency
USD
Category
Laptops & Notebooks
