Shrink lines and deliver an in-store experience that keeps customers coming back again and again. The feature-rich DS4600 Series for Retail helps associates scan items of all sizes, read barcodes in nearly any condition and handle transactions of all kinds. Bulky items in a shopping cart, a customer’s driver’s license at the returns desk, a mobile coupon at checkout, tiny barcodes in the jewelry department, data from a travel document, the DS4600 Series does more for your whole store.
Capture Barcodes Up to 28 Inches Away
Bulky and heavy items won’t slow down your checkout lines. With an industry-leading 28-inch scan range on UPC codes and bright aim dot, it’s easy for checkout associates to scan items in a shopper’s cart without leaving the cashwrap.
One Scanner for Your Whole Store
No matter what kind of data you need to capture, the DS4600 Series is ready for the job. Scan barcodes on a mobile phone. Capture tiny barcodes on jewelry tags, or DotCode and dotted DataMatrix barcodes through cellophane. Read wide barcodes on packages. Collect data from IDs. Parse driver’s license information. And much more.
Fastest Scanning Performance in Its Class
Empower every associate to scan like your best associate. An 800 MHz microprocessor, high-resolution megapixel sensor and Zebra’s exclusive PRZM Intelligent Imaging technology provide instant barcode capture on even the most challenging barcodes.
Do More Throughout Your Whole Store
With the DS4600 Series for Retail, you get a wide range of productivity-enhancing innovation to streamline more transactions and tasks throughout the store. Intelligent Document Capture not only captures images of documents, but automatically orients, de-skews and brightens the image for optimum clarity. Scan multiple barcodes with a single trigger pull, or automatically single out and scan one barcode on a field of many. You can capture data from travel documents with OCR. And there’s optional support for U.S. driver’s license parsing and EAS tag deactivation.
Product Specifications
Manufacturer
Zebra
Manufacturer Part Number
DS4608-HD7U2600ZCW
Brand Name
Zebra
Product Name

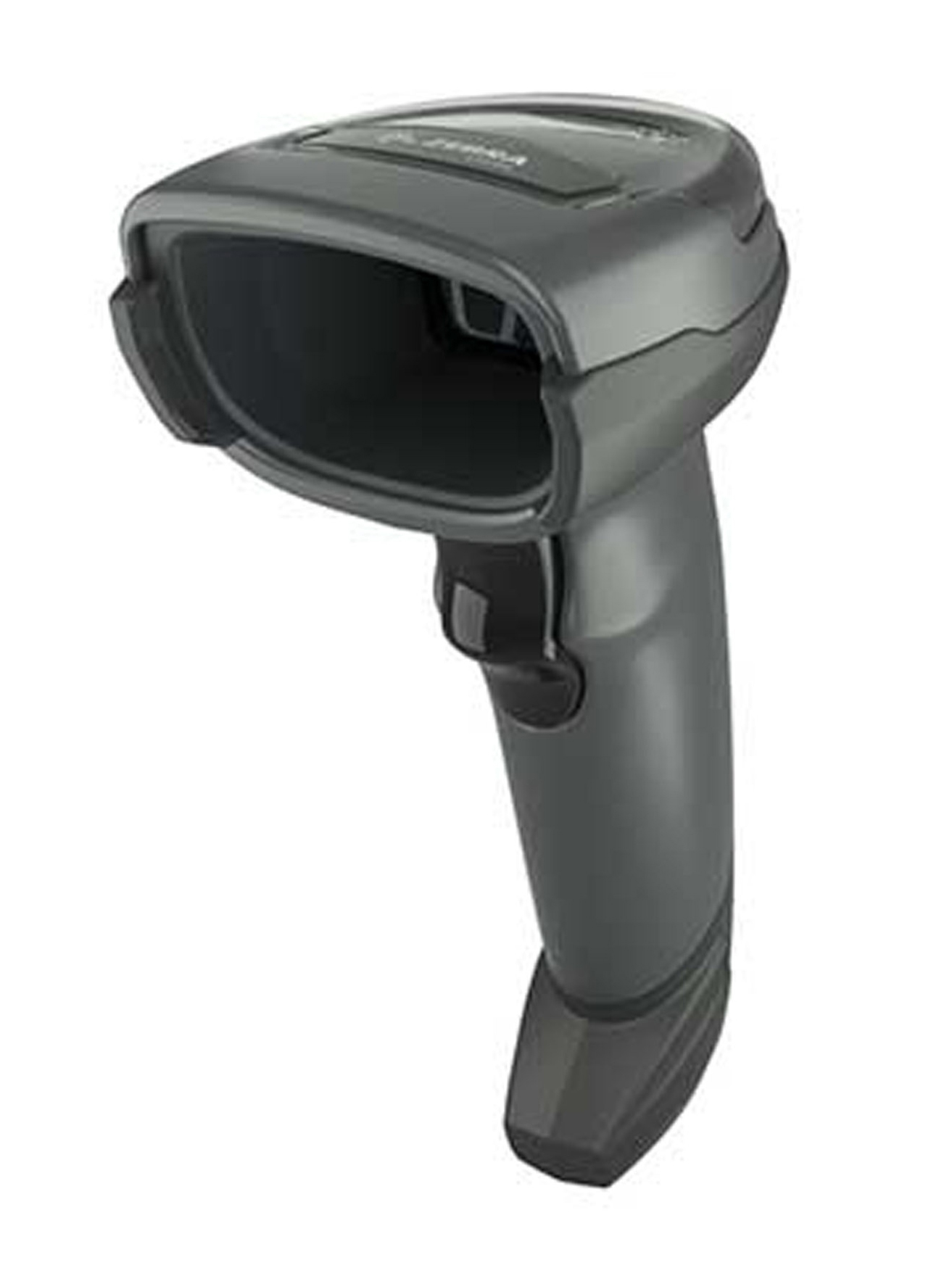

Zebra DS4608-HD Handheld bar code reader 1D/2D LED Black
Aztec Code, Composite Codes, Data Matrix, Dot Code A, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
Optical sensor resolution (W x H)
1280 x 800 pixels
Wavelength
660 nm
Pitch reading angle
-60 - 60°
Ports & interfaces
Connectivity technology
Wired
Standard interfaces
RS-232, USB
Performance
International Protection (IP) code
IP52
LED indicators
Yes
Product colour
Black
Certification
2011/65/EU, EN 50581:2012, EN IEC 63000:2018
UL 60950-1, CAN/CSA-C22.2
No. 60950-1-07. EN 60950-1:2006/A2:2013
IEC 60950-1:2005/A2:2013
IEC 62368-1 (ed.2); EN 62368-1:2014
IEC 62471:2006 (Ed.1.0); EN 62471:2008
FCC: 47 CFR 15, B, B
ICES-003 6, B, EN 55032, B, EN 55024, EN 55035, EN 60601-1-2:2015, IEC 60601-1-2:2014
Power
Power source type
DC
Input voltage
4.5-5.5 V
Power consumption
340 mA
Weight & dimensions
Width
67 mm
Depth
98 mm
Height
165 mm
Weight
161.9 g
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
5 - 95%
Storage relative humidity (H-H)
5 - 95%
Logistics data
Harmonized System (HS) code
84716070
Brand
Zebra
Availability
In Stock
Price Currency
USD
Category
Monitors & Displays
