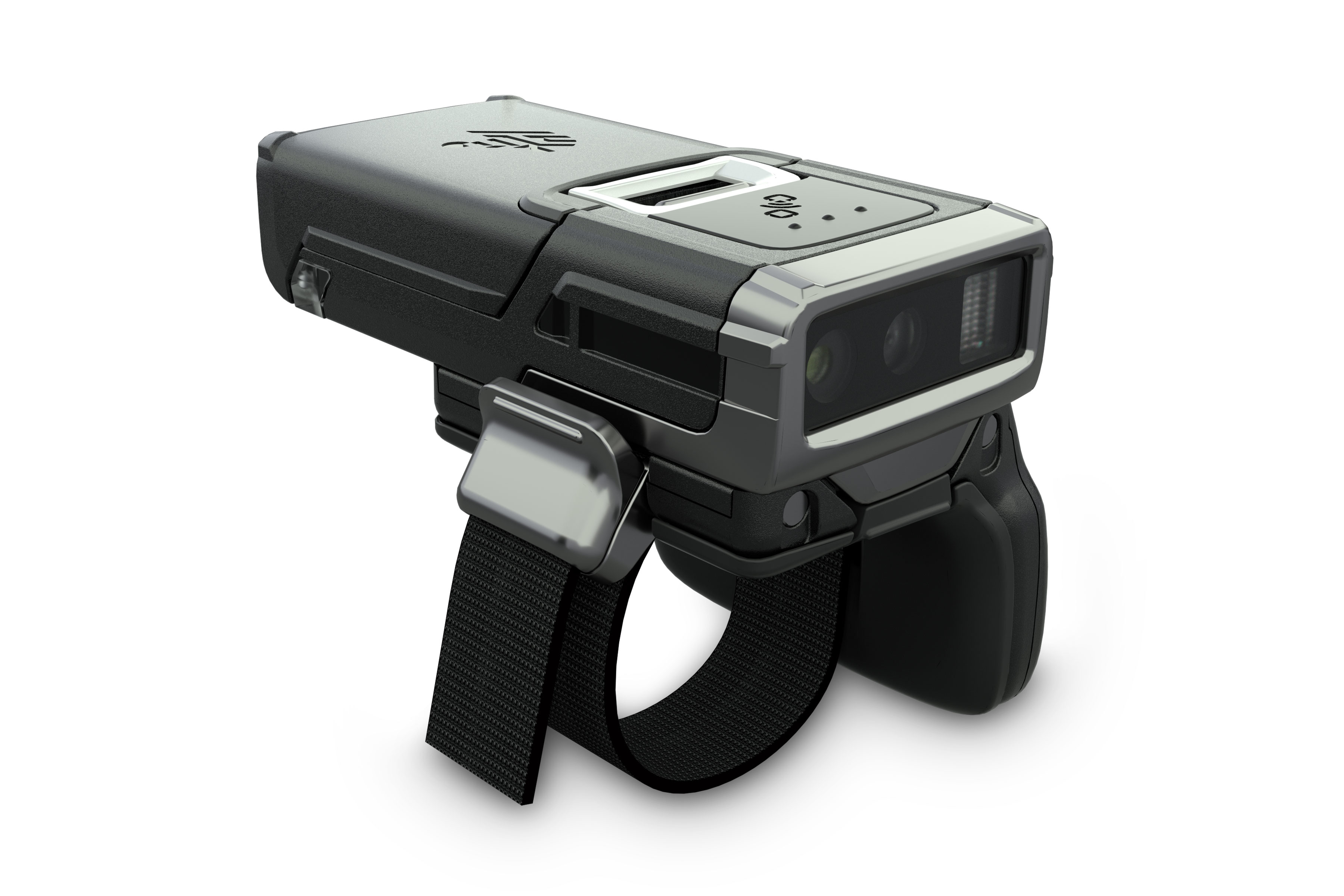

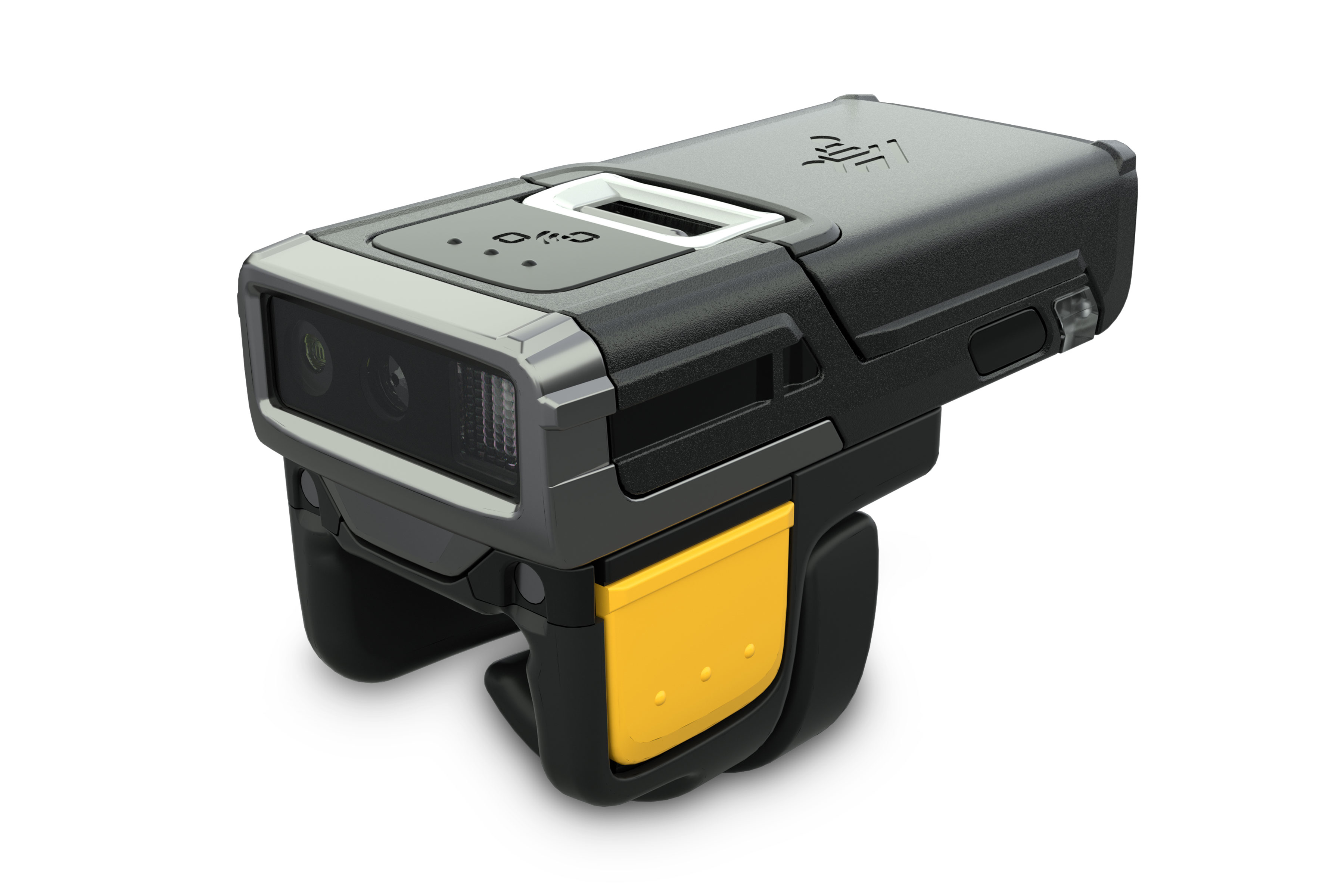

The 'Go-Everywhere' Wearable Scanner Built for the Enterprise. Today’s workers have high expectations for wearable devices — a modern design, a minimal footprint, and so easy to use that virtually no training is required. Your business requires a design that’s at home in both customer-facing areas and the warehouse, multiple wearable options for maximum use case flexibility, a rugged design to ensure a long lifecycle with a low Total Cost of Ownership (TCO), scanning options that match the needs of your environment, plus backroom accessories that reduce management time and cost. Now, you can have it all with the RS5100 Bluetooth Wearable Scanner.
Five Interchangeable Wearing Styles. Regardless of hand size or use cases, there’s a wearable option that will provide all day comfort. The new Enterprise Hand Mount offers maximum flexibility — a range of sizes for right and left hands with an adjustable scanner position and aiming angle. Wear it like a ring on a single finger, with multiple options for trigger placement. Wear it on a belt or around the neck with the retractable lanyard — or on a back-of-hand mount designed to reach into small spaces.
Wireless and Practically Weightless. At just over two ounces and two cubic inches, your workers will barely feel the RS5100, virtually eliminating hand fatigue. And Bluetooth provides freedom from cords — there are no cables to the host device for workers to manage, improving ergonomics and the user experience.
A Rugged Design with World-class Scanning. The best-in-class rugged design can handle drops, bumps and even a high-pressure hose down — and the trigger is rated for millions of presses. Two scan engine options instantly capture virtually any barcode in practically any condition. And the wider field of view makes barcode capture even easier.
Product Specifications
Manufacturer
Zebra
Manufacturer Part Number
RS51C0-TNNMWR
Brand Name
Zebra
Product Name
Zebra RS5100 Wearable bar code reader 1D/2D Laser Black
Mfr. Part Number
RS51C0-TNNMWR
Scanning
Type
Wearable bar code reader
Scanner type
1D/2D
Sensor type
Laser
Linear (1D) barcodes supported
Code 11, Code 128, Code 39, Code 93, GS1 DataBar, MSI, A, E
2D (matrix stacked) barcodes supported
Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
Optical sensor resolution (W x H)
1280 x 960 pixels
Light levels (direct sunlight)
0 - 107639 lx
Wavelength
655 nm
Tilt reading angle
-60 - 60°
Pitch reading angle
-60 - 60°
Yaw reading angle
0 - 360°
Ports interfaces
Connectivity technology
Wireless
Standard interfaces
Bluetooth
Bluetooth version
5.2
Bluetooth Low Energy (BLE)
Yes
Near Field Communication (NFC)
Yes
Performance
LED indicators
Yes
Product colour
Black
Power
Power source type
Battery
Battery type
Built-in battery
Weight dimensions
Width
28 mm
Depth
21 mm
Height
61 mm
Weight
70 g
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-40 - 60 °C
Operating relative humidity (H-H)
5 - 95%
Battery
Battery technology
Lithium-Ion (Li-Ion)
Battery capacity
480 mAh
Brand
Zebra
Availability
In Stock
Price Currency
USD
Category
Keyboards, Mice Peripherals
